Technical Differentiation Solution
Deep Customization. Engineered to Your Spec.
For partners who demand strong product differentiation and technical exclusivity, EOSYS offers deep structural customization -- from keyway profiles to locking architectures -- all machined to ±0.01mm tolerance on our 50+ TSUGAMI CNC Swiss-type platforms.
Beyond Cosmetic Changes
What Is Deep Customization?
Unlike light customization -- which focuses on branding elements such as packaging, logos, and key card design -- deep customization involves fundamental changes to the cylinder's mechanical architecture. EOSYS engineers work alongside your team to develop products that are structurally unique, technically competitive, and precisely aligned with your target market's regulatory and security requirements.
Light Customization
- Branded packaging & key heads
- Laser logo marking
- Security key card design
- Color & surface finish selection
- Minor appearance adjustments

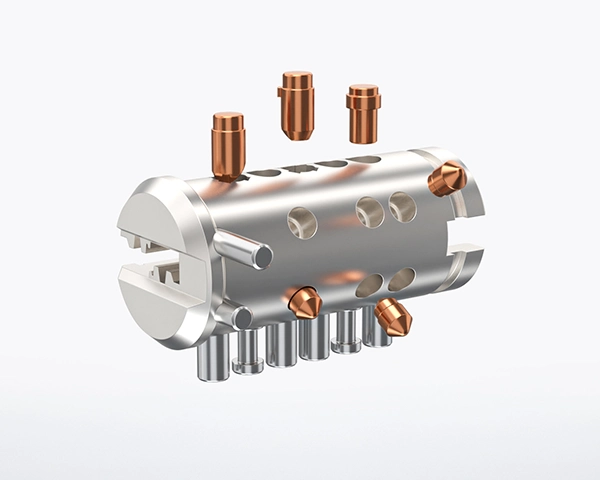

Deep Customization
- Custom keyway profile design
- Key pin specification engineering
- Pin quantity & configuration
- Locking structure redesign
- Advanced security feature integration
Customization Parameters
Full-Spectrum Structural Customization
Every parameter of the cylinder's mechanical architecture can be tailored to your market positioning, regulatory requirements, and competitive strategy.

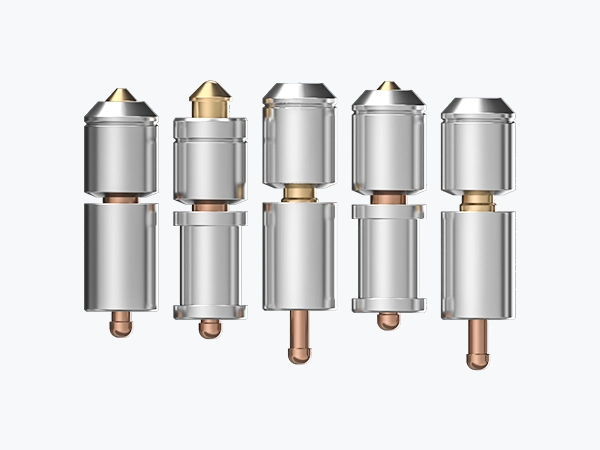

Key Pin Specifications
Define custom pin heights, diameters, and profiles. Flat-bottom pins are standard at EOSYS for enhanced anti-pick resistance. Tight tolerances on every pin ensure consistent key operation across large production batches.
Pin tolerance controlled to ±0.01mm

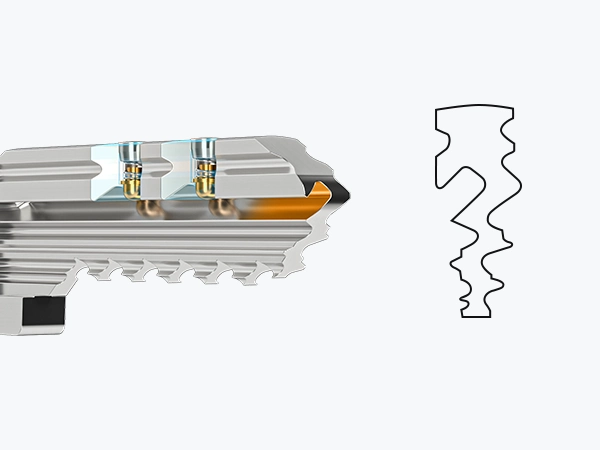

Keyway Profile Design
Develop a proprietary keyway profile exclusive to your brand. EOSYS creates dedicated inspection gauges for each custom keyway, ensuring dimensional consistency across every order and eliminating cross-compatibility with competitor products.
Exclusive keyway with dedicated gauges

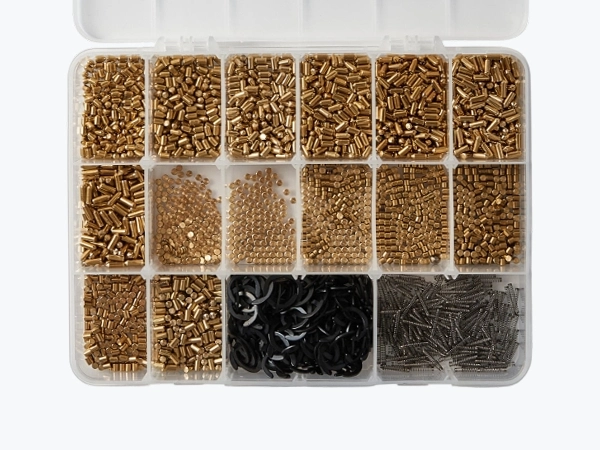

Pin Quantity Configuration
Configure the number of pin stacks to match your desired security grade and key combination capacity. Higher pin counts increase theoretical differs and resistance to manipulation, directly supporting EN1303 and SKG certification targets.
Scalable from standard to high-security

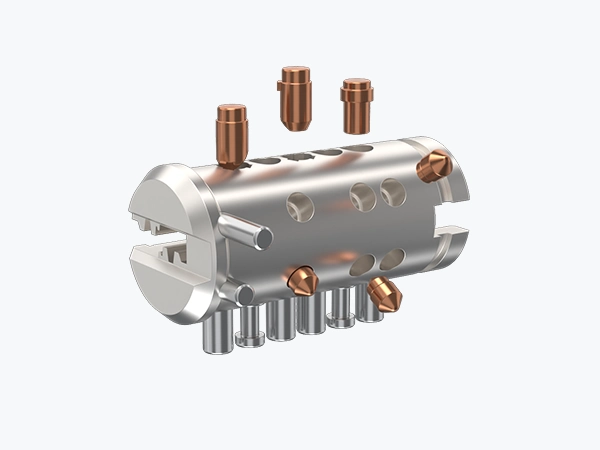

Locking Structure Design
Redesign the internal locking mechanism -- including sidebar configurations, floating elements, and moving component architectures. EOSYS's multi-axis machining centers enable complex geometries that are difficult for competitors to replicate.
Multi-axis CNC for complex geometries

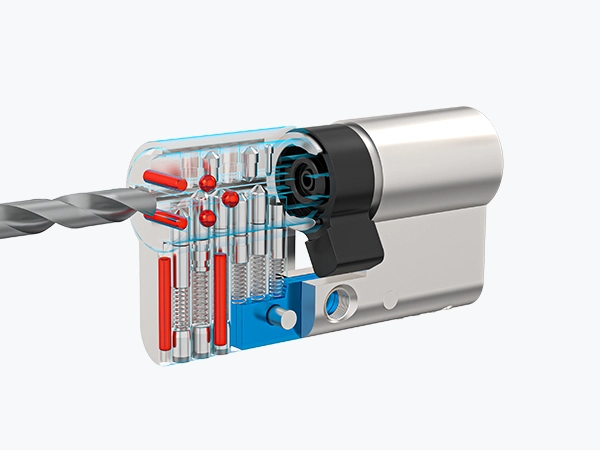

Advanced Security Features
Integrate targeted resistance features: anti-drill (HRC60 hardened inserts), anti-pick (0.1mm plug-shell clearance, no chamfer on pin holes), anti-bump, anti-snap, anti-break, and anti-3D copy protection through floating/moving element structures.
Up to SKG*** & EN1303 highest grade

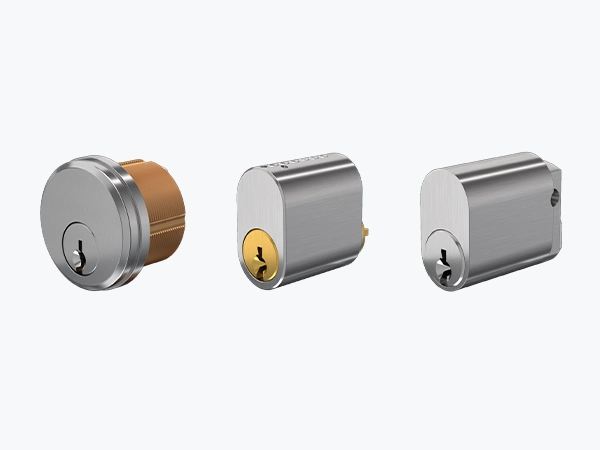

Connector & Interface Design
Customize the cam, tailpiece, and connector interface to integrate seamlessly with your hardware ecosystem -- including Euro profile, American standard, Scandinavian oval, and Australian oval configurations.
Multi-standard compatibility
Engineering Workflow
From Concept to Certified Product
EOSYS's 5 full-time R&D engineers collaborate directly with your technical team through a structured development process, ensuring precision at every stage.
Requirements Analysis
Joint review of market positioning, target certifications, security grade requirements, and competitive differentiation goals.
Engineering Design
Detailed component drawings for every part -- keyway, plug, shell, pins -- shared with your team for sign-off before production.
Prototype & Tooling
Multiple prototype samples produced. Dedicated inspection gauges manufactured for keyway, plug, and shell to lock in dimensional standards.
Validation & Testing
In-house EN1303 testing capability. First article inspection via optical projector and gauges. Client sample approval before mass production.
Mass Production & QC
2-hour interval inspections, tooling replacement every 5,000 units, 100% finished product inspection. Full inspection reports delivered.
Precision Manufacturing
Why EOSYS Precision Matters for Deep Customization
Deep customization demands manufacturing systems that can reliably reproduce complex, non-standard geometries at scale. EOSYS's investment in precision infrastructure directly enables the structural customization our partners require.
Single-Process Machining
Each clamping operation machines multiple critical features simultaneously on TSUGAMI Swiss-type CNC, eliminating cumulative tolerance errors from multi-machine processing.
Pin Holes Before Keyway
The plug is machined with pin holes first, then the keyway is cut -- improving the positional accuracy of both features and enhancing anti-pick performance.
0.1mm Plug-housing Clearance
Ultra-tight clearance between plug and housing, combined with no chamfer on pin holes, significantly increases resistance to picking and manipulation attacks.
Tooling Control Protocol
All cutting tools are inspected via optical projector upon arrival. Mandatory replacement every 5,000 units -- not when worn -- with detailed tracking logs for full traceability.
50+
TSUGAMI CNC Swiss-type Machines
±0.01mm
Machining Tolerance
5,000
Units Per Tooling Cycle
2hr
Interval Process Inspection
Quality Assurance
Rigorous QC for Every Custom Order
Custom products demand even stricter quality protocols. EOSYS's 10-member QC team implements a multi-layered inspection system to guarantee that every batch matches your approved specifications.
Raw Material Verification
Spectral analysis on every incoming material batch. ROHS-compliant supply agreements. Third-party lab testing triggered on any anomaly. Dimensional and straightness checks before warehouse acceptance.
Dedicated Inspection Gauges
Custom gauges are manufactured for each unique keyway, plug, and shell design. These gauges serve as the binding reference standard for all future production runs of your product.
First Article Inspection
Optical projector verification and gauge inspection of the first production piece. Mass production only begins after first article passes all dimensional and functional criteria.
2-Hour Interval Audits
Critical dimensions are re-inspected every 2 hours during production. If any audit fails, the entire 2-hour batch is scrapped and production restarts from standard -- no exceptions.
Component Pre-Inspection
Outsourced components (pins, drivers, etc.) undergo 8% sampling inspection at the supplier before shipment, followed by a second 8% inspection upon arrival at EOSYS -- dual-layer verification.
100% Final Inspection
Every finished unit is individually tested for key operation, interchangeability, and mechanical function. Complete inspection reports with color board references are provided with each shipment.
Ideal Partners
Who Benefits from Deep Customization?
Deep customization is designed for organizations that compete on technical merit and require products that cannot be sourced from standard catalogs.
Established Lock Brands
Develop proprietary keyway profiles and patented locking structures that define your brand's security identity. Exclusive market protection agreements available for custom designs.
- Proprietary keyway exclusivity
- Patent-backed differentiation
- Market protection agreements
High-Volume Distributors
Build a technically differentiated private-label product portfolio that positions you above commodity-grade competition. Scalable production capacity supports growing demand.
- Private-label product development
- Scalable 7,000㎡ production base
- Consistent batch-to-batch quality
Project Integrators
Meet elevated security specifications for commercial, institutional, and government projects. Custom cylinders engineered to achieve specific EN1303 grades and SKG certification levels.
- EN1303 & SKG*** certification targets
- In-house testing laboratory
- Complete documentation & reports
Strategic Value
What Deep Customization Delivers to Your Business
Beyond technical specifications, deep customization with EOSYS creates lasting competitive advantages that compound over time.
Brand Differentiation
Proprietary designs that competitors cannot replicate or source from other suppliers.
Certification Readiness
Products engineered from the ground up to meet specific EN1303, SKG, and regional certification targets.
Reduced Risk
Prototype validation, dedicated gauges, and strict QC eliminate production surprises and reduce market entry risk.
Supply Chain Stability
ISO9001/14001 certified facility with 200 employees, audited by Xiaomi, Huawei, and Allegion. Reliable capacity at scale.
Start Your Deep Customization Project
Engineer Your Competitive Advantage with EOSYS
Share your target market, security requirements, and differentiation goals. Our engineering team will provide a technical feasibility assessment and customization roadmap within 48 hours.
