Why EOSYS
Product Differentiation
Every EOSYS cylinder is engineered to exceed industry norms. From luxury-grade surface finishing to sub-micron machining tolerances, discover the technical advantages that set our products apart in the global security hardware market.
±0.01mm
Machining Tolerance
0.1mm
Shell-Plug Clearance
HRC 60
Hardened Steel Grade
50+
TSUGAMI CNC Machines
Surface Excellence

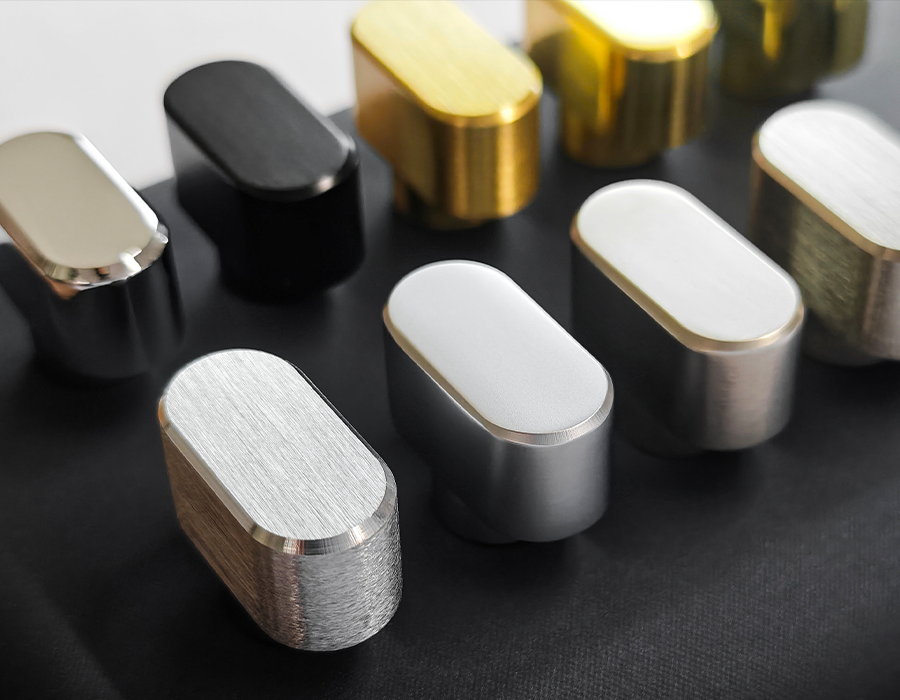

Luxury-Grade Surface Treatment
While most lock cylinder manufacturers apply standard industrial electroplating, EOSYS adopts the same electroplating standards used for luxury metal goods. This delivers a visibly superior surface finish that elevates the perceived quality and shelf appeal of every product.
- Premium finish consistency -- uniform color, texture, and reflectivity across every batch
- Color board archiving -- signed reference boards ensure repeat orders match original specifications
- Dedicated supplier tracking -- special color plating is locked to the original supplier for minimal color deviation
Precision Manufacturing

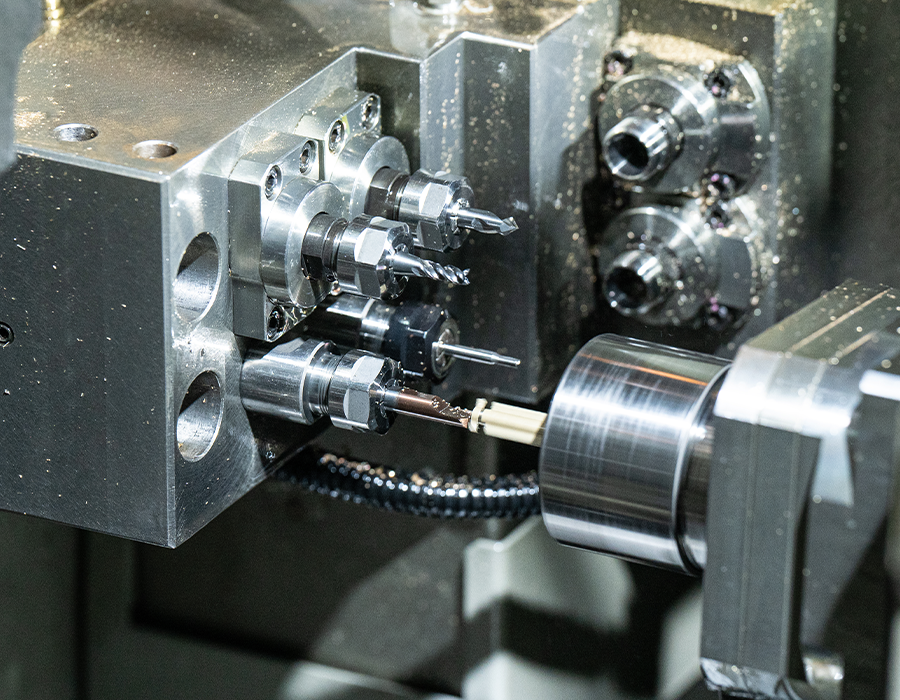

High-Precision CNC Machining
With over 50 imported Japanese TSUGAMI CNC Swiss-type machines, EOSYS achieves machining tolerances of ±0.01mm. Our single-clamping, multi-axis processing approach ensures that multiple critical features are machined in one setup -- eliminating the cumulative errors inherent in multi-machine workflows.
Single-Clamping Process
Multiple critical features machined in one setup, ensuring correlated dimensional accuracy
Zero Cumulative Error
Eliminates tolerance stack-up from multi-machine transfers common in conventional manufacturing
Batch Consistency
Higher dimensional consistency across production runs for reliable interchangeability
Smoother Operation
Superior mechanical performance with smoother key insertion and turning action
Process Innovation
Advanced Cylinder Bore Processing
EOSYS employs a proprietary machining sequence that fundamentally improves cylinder plug accuracy and security performance.
Pin Holes First
Pin chamber holes are drilled before the keyway slot is cut. This sequence preserves material integrity around the pin bores, resulting in more precise and consistent pin chamber geometry.
Keyway Slot After
The keyway profile is broached after pin hole drilling. This eliminates the deformation risk that occurs when drilling into an already-slotted plug, ensuring tighter keyway-to-pin alignment.
Superior Accuracy
The result is measurably higher keyway profile accuracy and pin bore concentricity -- directly improving key operation smoothness, pick resistance, and overall security performance.
Industry Comparison
Most manufacturers cut the keyway slot first, then drill pin holes -- a sequence that introduces deformation and reduces bore accuracy. EOSYS reverses this order to achieve measurably tighter tolerances and better security characteristics.
Anti-Pick Defense
Flat-Bottom Pin Technology
Unlike conventional rounded-bottom pins used by most manufacturers, EOSYS exclusively uses flat-bottom driver pins and key pins. This design eliminates the tactile feedback that lock pickers rely on to detect the shear line.
Conventional Rounded Pins
Provide tactile and auditory feedback at the shear line, making single-pin picking easier
EOSYS Flat-Bottom Pins
Eliminate shear-line feedback, dramatically increasing resistance to picking and manipulation attacks
Pin tolerances are tightly controlled using precision-ground tooling, with dedicated pin manufacturing equipment ensuring dimensional consistency across millions of units.
Precision Fit
0.1mm Shell-Plug Clearance
The gap between the cylinder shell (housing) and the plug (core) is maintained at just 0.1mm -- far tighter than industry averages. This ultra-tight clearance is a critical anti-manipulation feature.
0.1mm
radial clearance
Cross-section illustration (not to scale)
Engineering Capability
Complex Security Cylinder Production
Backed by multi-axis machining centers, Swiss-type CNC lathes, and an experienced R&D team, EOSYS specializes in producing high-complexity security cylinders that most manufacturers cannot achieve.
Anti-Drill Protection
Hardened steel inserts up to HRC 60 embedded in critical areas to resist drill attacks
Anti-Bump Design
Patented internal structures neutralize bump key energy transfer to prevent unauthorized opening
Anti-Snap / Anti-Break
Engineered break points and reinforced bodies protect against forced snapping and pulling attacks
Anti-3D Copy
Floating elements and moving components prevent key duplication through scanning or 3D printing
Multi-Axis Machining
Advanced multi-axis machining centers enable complex geometries impossible with conventional equipment
100+ Global Patents
Including EU invention patent EP4411093A1 and multiple WIPO PCT-protected technologies
Tooling Management

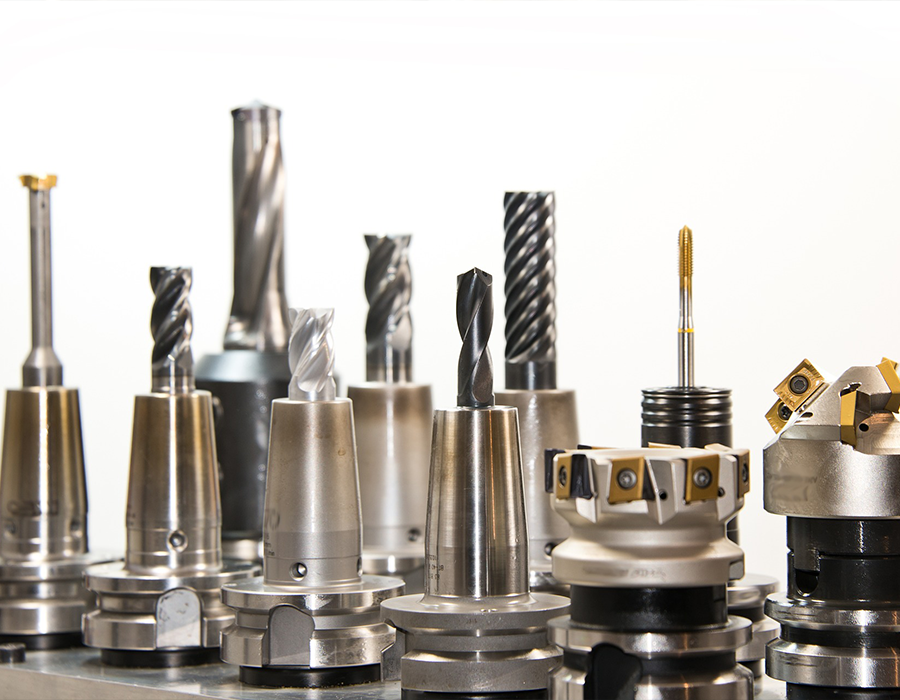

Proactive Tooling Control System
Tool wear is one of the largest hidden causes of quality degradation in CNC manufacturing. EOSYS eliminates this risk through a proactive replacement protocol -- not reactive maintenance.
Incoming Inspection
All purchased tooling is verified against specifications using optical profile projectors before entering production
Scheduled Replacement
Complete tooling sets are replaced every 5,000 units -- regardless of apparent condition -- unlike competitors who wait until tools show visible wear
Full Traceability
After each operation, tools are stored with production count labels, creating a complete audit trail for quality management
At a Glance
EOSYS vs. Conventional Manufacturing
A side-by-side comparison of key manufacturing differentiators that directly impact product security, quality, and market competitiveness.
| Feature | Conventional | EOSYS |
|---|---|---|
| Surface Treatment | Standard industrial plating | Luxury-grade electroplating standard |
| CNC Precision | Multi-machine transfer, tolerance stacking | Single-clamping ±0.01mm, zero cumulative error |
| Bore Processing | Keyway first, then pin holes | Pin holes first, then keyway -- higher accuracy |
| Pin Design | Rounded-bottom pins | Flat-bottom pins -- enhanced anti-pick |
| Shell-Plug Gap | Wider tolerance, easier manipulation | 0.1mm clearance, no bore chamfer |
| Tooling Control | Replace when worn | Replace every 5,000 units proactively |
| Complexity Capability | Standard pin tumbler designs | Multi-axis complex security structures |
Experience the Difference
See EOSYS Precision in Your Hands
Request product samples to evaluate our machining quality, surface finish, and mechanical performance firsthand. Our engineering team is ready to discuss how these advantages translate to your market positioning.
